non fire rated access panel for tiled wall areas
VISION 8000 Series Riser Doors
NON FIRE RATED

The VISION 8000 Series NFR is a non-fire rated, strong, purpose made, high quality concealed riser door designed to provide a simple yet secure means of accessing building services through ceramic tile, marble or stone clad walls.

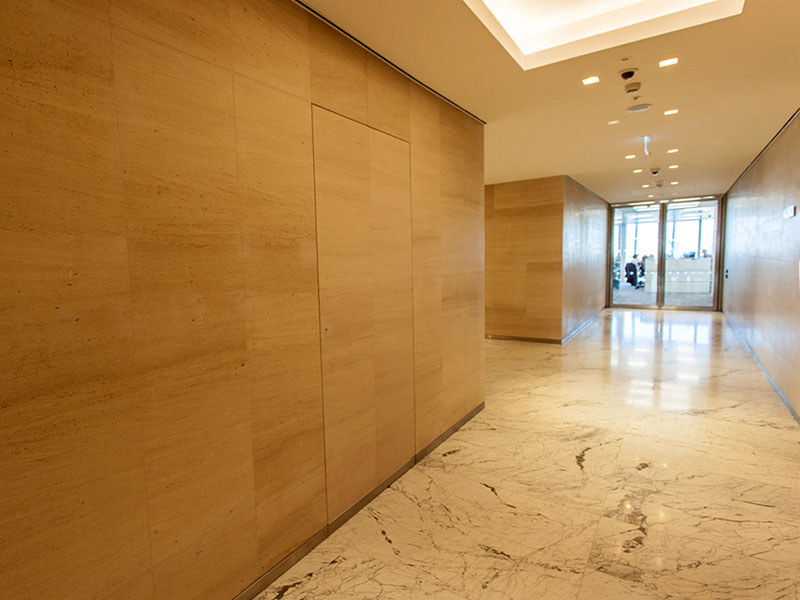

Suitable for vertical use where doors are to be installed prior to tiling. Ideal for use in kitchens, bathrooms, or shower rooms where discreet access to services is required. All riser doors are manufactured to order and can be designed to suit the specified tile module. The VISION 8000 Series can be clad in materials including stone, marble or ceramic tile for a finish to match surrounding décor for a concealed aesthetic finish, or to provide a visually impacting design for any project.

VISION 8000 SERIES - NON FIRE RATED

Features / Benefits

COMPOSITION

The welded metal frame holds a metal door tray lined with tile backing board. The door is hinged via concealed, load bearing hinges up to 120 kg capacity and opens out towards the user. It is held closed by either a push catch, 3 point lock or 3 point high security lock.

  • Facade of the riser door can be clad in stone, marble, ceramic or tile
  • Manufactured to specified tile module size
  • Concealed, aesthetic finish to match surrounding decor
  • Allows for visually impacting designs if required
  • Easy to install and lockable
  • Maximum tile and adhesive build depth is 25mm
  • Concealed, load bearing hinges up to 120kg capacity
  • Single door (SD) and double door (DD) configurations with continuous access (CSA) as a bespoke option
  • Vertical (wall) use, with frame and lock options
  • Fully recyclable at end of life

The riser doors are manufactured to the exact tile module specified with a concealed tiled frame (TF)/(TD) tiled door.  A constant grout width gap is maintained between the door and the frame by the load bearing hinge system, with up to 120kg capacity.

The door and frame are supplied with a white powder coated finish in RAL 9010M (matt), other RAL colours are available on request.

Riser doors are single or double door configurations and side hung. The door is removable if damage occurs or during installation.

Please contact our Technical team on 01827 719051 for more information.


FRAME

1.5mm thick, factory welded electro-galvanised mild steel with concealed frame flange.

  • Manufactured to suit specific tile module size with rubber compression gasket and moisture guard to all sides.
  • For sizes >600mm x 1200mm, or tile-plus-adhesive depth >13mm, heavy-duty butt hinges are applied.
  • Powder coat finish matt RAL 9010M as standard.


DOOR

1.5mm thick, electro-galvanised mild steel door tray

  • Lined with 12.5mm marine ply to accept tile adhesive
  • Powder coat finish to matt RAL 9010M as standard
  • The door is removable if damage occurs or during installation
  • Single door (SD) and double door (DD) configurations.


LOCKS

Available with;

  • Concealed push catch (PC)
  • 3 Point Lock (3PL)
  • 3 Point High Security Lock (3HS)

For door heights >1200mm, please specify three-point lock (3PL)


FIRE RATING

VISION 8000 Series NFR Riser Doors are not fire rated. For fire rated products, please see VISION 8000 SERIES FIRE RATED » (up to 2hr Fire rating)


ACOUSTIC SHIELDING

The VISION 8000 Series non-fire rated riser door has a standard acoustic rating of 30dB.


TYPICAL SIZES / WEIGHTS

Nominal only, actual size is dependent on tile selected.

Measurements shown X x Y;

SINGLE DOOR (SD)

300 x 300mm - 4kg
300 x 600mm - 7kg
450 x 450mm - 8kg
600 x 600mm - 15kg
600 x 900mm - 22kg
600 x 1200mm - 28kg


MIN/MAX SIZES

Leaf width (minimum) = 300 mm
Leaf height (minimum) = 300 mm

Leaf width (maximum) = 1050 mm
Leaf height (maximum) = 3000 mm

Size refers to outer frame size.


NOTES

All doors hinge along dimension Y

X and Y dimensions on the VISION 8000 Series Tiled Frame (TF) are the manufactured panel size and relate to the door size that is obtained from the tile module and grout thickness modules.

Performance Standards VISION 8000 SERIES - NON FIRE RATED

Fire Rating Non fire rated product. Manufactured primarily from steel is non-combustible excluding the marine ply, tiled over on the front face.

Guide Specification VISION 8000 SERIES - NON FIRE RATED

SUITABILITYSuitable for vertical use where the riser door is to be installed prior to tiling. Specified in commercial, residential and public buildings for non-fire rated application where discreet access to services is required. All VISION 8000 Series riser doors are manufactured to order and can be designed to suit the specified tile module.
MATERIALFrame 1.5mm / Door 1.5mm thick electro-galvanised mild steel. Door lined with 12mm marine ply to accept tiled finish.
DOOR CONFIGURATIONSingle door (SD) and double door (DD) configurations as standard. Continuous access (CA) door configurations available as a bespoke option.
FRAME DEPTHOverall frame depth - 76.5mm
GROUTMinimum grout thickness = 1mm
FINISHWhite powder coated frame and door to RAL 9010M (Matt finish)
LOCKConcealed push catch (PC)/3 Point Lock (3PL) / 3 Point High Security Lock (3HS)
STRUCTURAL OPENINGX and Y dimensions are outside frame sizes. Structural Opening requirement for installation is (X+(2x grout width)+5) x (Y+(2x grout width)+5).
NotesOur technical team will assist you to determine the correct specification and dimensions for your project.

More info? Place an order? Get in touch today

Sales: 01827 719050 / Technical: 01827 719051
