non fire rated double riser door with metal door
VEGA 1500 Series Riser Doors
NON FIRE RATED

The VEGA 1500 Series is a non-fire rated riser door, manufactured and tested to meet standards suitable for a wide range of non-fire rated market applications.

Available in single door and double door configurations, with a steel frame and lightweight door.

1 hour fire rated product 4000 -1FR Profab Access Certifire scheme

VEGA 1500 SERIES - NON FIRE RATED

Features / Benefits

Designed and CNC manufactured in our UK factory (to ISO9001:2015 and 14001:2015) to your exact specification, our VEGA 1500 Series riser doors are tested for installation into Shaft Wall construction and a standard Flexible construction (steel studs and plaster boards).

  • Fast & simple to install
  • Quick release pivot hinge with retractable flush bolt
  • Hinge pin for easy positioning and door alignment
  • Light weight door for easy handling
  • Single door and double door configurations
  • Fully recyclable at end of life


FRAME

Fully welded 4-sided 1.2mm electro-galvanised mild steel frame, incorporating either a simulated dry wall edge bead, picture frame or deep plaster frame.

  • Fully powder coated matt RAL9010, suitable for finishing on site.

DOOR

Lightweight door: 17.5kg/m2 with frame: 1.5kg/linear meter

  • Fully powder coated matt RAL9010, suitable for finishing on site.


FRAME EDGE

The VEGA 1500-NFR is available with a choice of frame edge types to suit the application;

  • Beaded frame - ideal for tape and jointing/skimming (BF)
  • Picture frame - ideal for retro fitting/finished areas (PF)

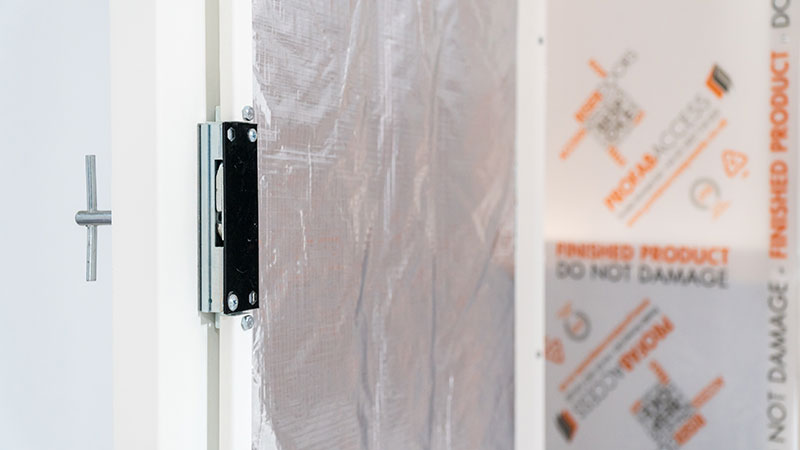

LOCKS

Available with 3 point lock or high security 3 point lock. A T bar key is used to unlatch and pull door leaf open. White plastic collar and plug as standard (stainless steel collar optional). Euro cylinder size 50mm x 10mm.

  • Three Point Lock (3PL)
  • Three Point High Security Lock (3HS)

View our video - Euro Cylinder Lock Installation »


FIRE PERFORMANCE

The VEGA 1500-NFR is a non fire rated riser door.

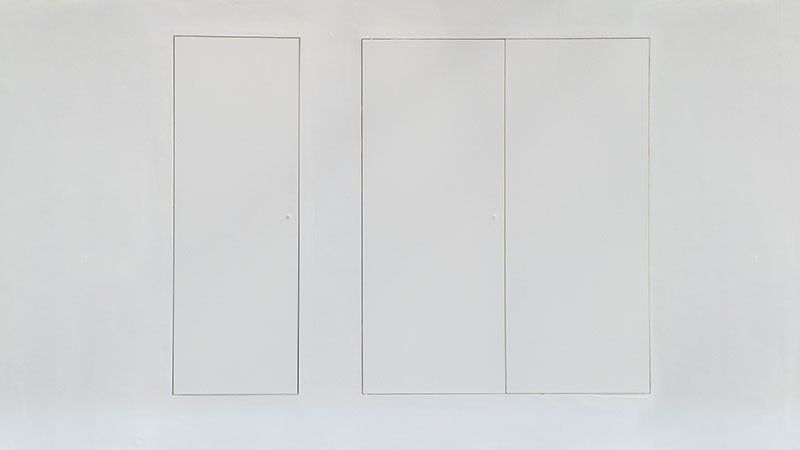

DOOR CONFIGURATIONS

Available as single or double leaf doors

  • Single Door (SD)
  • Double Door (DD)

Performance Standards VEGA 1500 SERIES - NON FIRE RATED

Suitability Interior application, in areas with normal humidity. 3 frame/bead options according to wall finish.

Guide Specification VEGA 1500 SERIES - NON FIRE RATED

MATERIALFrame 1.2mm mild steel / Lightweight door
FRAME DEPTH66mm
PANEL SANDWICH36mm
FINISHFully powder coated matt RAL9010, suitable for finishing on site.
HARDWARE3-part lock (3PL) or High Security 3-part lock (3HS) available (see OPTIONS)
STRUCTURAL OPENINGX and Y dimensions are outside frame sizes. Structural Opening requirement for installation is (X+10) x (Y+10) mm
QUALITYCNC manufactured in the UK to ISO9001:2015 and 14001:2015

More info? Place an order? Get in touch today

Sales: 01827 719050 / Technical: 01827 719051

Options
