IMAGE 2000 Series non-fire rated plastic access panel for walls and ceilings
IMAGE 2000 Series Access Panels
NON FIRE RATED

IMAGE 2000 Series non-fire rated plastic access panels provide a quick-fix solution, where simple, un-hindered access is required to building services including valves, plumbing or switches without the need for security.

Ideally suited to domestic or residential construction projects, this multi-functional access panel is suitable for new-build applications or retrofitting after remedial work.

IMAGE 2000 SERIES - NON FIRE RATED

Features / Benefits

COMPOSITION

The plastic access panel has an integral push-in door catch, easily opened with a flat head screw driver.

  • Economic, plastic access panel
  • Simple and fast to install
  • Lightweight
  • Non-locking solution
  • Picture frame covers rough aperture
  • Integral push-in door catch
  • Clip-in removeable door
  • Door easily opened with a flat head screwdriver
  • Lightly textured surface for painting over if required.


FRAME

Door and frame are manufactured separately comprising injection moulded high impact white styrene plastic.

Nominal material thickness of 3.5mm

Finished in self-colour white, lightly textured for painting or wallpapering on site if required.


FRAME EDGE

Options include;

  • Picture frame (PF)


DOOR

SINGLE DOOR (SD)

Door is easily removeable from the frame requiring no tools

A simple pivot is moulded into the door rear

Door is kept closed by concealed, integral location lugs

Finished in self-colour white, lightly textured for painting or wallpapering on site if required.


LOCKS

This is a non-locking access panel

Easily opened with a flat head screwdriver


FIRE RATING

The IMAGE 2000-NFR Access Panels are not fire rated.


TYPICAL SIZES / WEIGHTS

Measurements shown X x Y;

100 x 150mm - 0.15kg
150 x 225mm - 0.22kg
200 x 200mm - 0.3kg
300 x 300mm - 0.42kg
350 x 350mm - 0.48kg*
450 x 450mm - 1kg*
550 x 550mm - 1.5kg*


MIN/MAX SIZES

* we do not recommend sizes >350 x 350mm for ceiling applications


NOTES

All doors hinge along dimension Y

Performance Standards IMAGE 2000 SERIES - NON FIRE RATED

Fire Rating Non fire rated product.

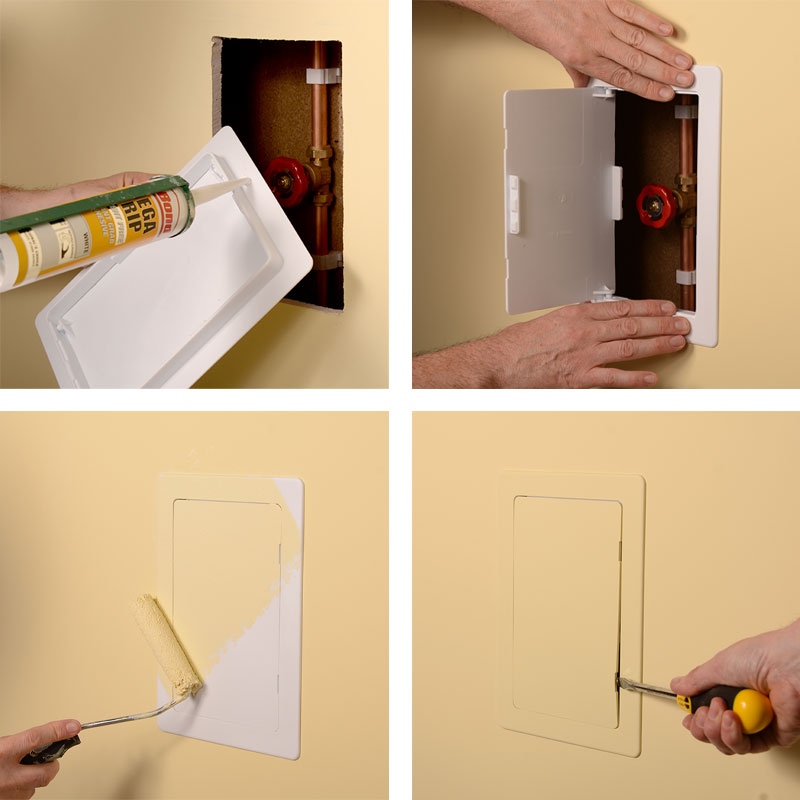

frame profile options

Downloads IMAGE 2000 SERIES - NON FIRE RATED

External Resources / Links

Guide Specification IMAGE 2000 SERIES - NON FIRE RATED

SUITABILITYSuitable for vertical or horizontal use into walls and ceilings.
MATERIALInjection moulded high impact white serene plastic
DOOR CONFIGURATIONSingle Door (SD)
FRAME EDGEPicture frame (PF)
FRAME DEPTHOverall depth - 21mm with the door in the closed position. In the open position, add 8mm along hinge side.
FINISHFinished in self-colour white, lightly textured for decorating on site.
LOCKThis is a non-locking access panel. Easily opened with a flat head screwdriver.
STRUCTURAL OPENINGStructural Opening requirement for installation should be 6-8, larger than the panel size selected.
CLEAR OPENINGClear available access once installed, with door in the fully open position is (X-32) x (Y-12)
NotesFor technical assistance, please contact our Technical Department on +44 (0)1827 719051.
