non fire rated access panel for tiled wall areas
VISION 8000 Series Access Panels
NON FIRE RATED

The VISION 8000-NFR is a non-fire rated, strong, purpose made, high quality access panel designed to provide a simple yet secure means of accessing building services through ceramic tile clad walls.

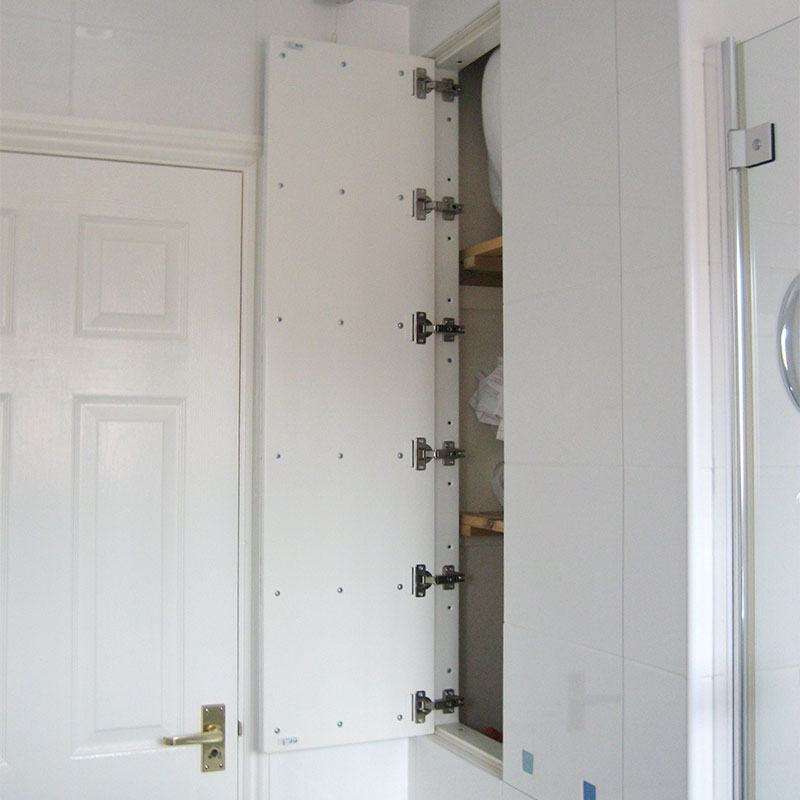

Suitable for vertical use where panel is to be installed prior to tiling. Ideal for use in kitchens, bathrooms, or shower rooms where discrete access to services is required. All panels are manufactured to order and can be designed to suit the specified tile module size.

VISION 8000 SERIES - NON FIRE RATED

Features / Benefits

COMPOSITION

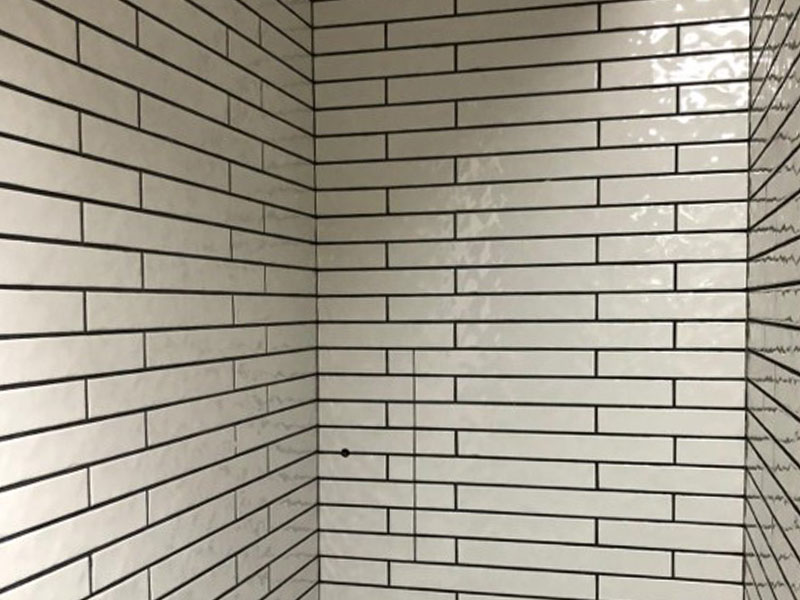

VISION 8000 Series access panels are manufactured to the specified tile module size, either as a fully concealed tiled frame (TF)/tiled door (TD) design so after installation only the open grout line is visible, or alternatively manufactured for retrofitting where the exposed edge frame (EEF)/edge door (ED) will be visible.

  • Facade of the access panel can be clad in ceramic tiles
  • Manufactures to specified tile module size
  • Concealed, aesthetic finish
  • Easy to install and lockable
  • Maximum tile and adhesive build depth is 13mm
  • Single Door (SD), side hung configuration
  • Vertical (wall) use, with frame and lock options
  • Fully recyclable at end of life.

All panels are single door and side hung. Panels can be top hung and/or lift out if size permits.

Please contact our technical team on 01827 719051 for more information.

FRAME

1.5mm thick, factory welded electro-galvanised mild steel with concealed frame flange.

  • For sizes >600mm x 1200mm, or tile-plus-adhesive depth >13mm, heavy duty butt hinges are applied
  • Manufactured to suit specific tile module size with rubber compression gasket and moisture guard to all sides
  • Powder coat finish matt RAL 9010M as standard
  • A constant grout width is maintained between the door and frame by the fully adjustable hinge system.

DOOR

1.5mm thick, electro-galvanised mild steel door tray

  • The factory welded metal frame holds a metal door tray lined with 12mm marine plywood as standard to accept the tile adhesive but any board can be specified up to 12.5mm in thickness
  • Powder coat finish to matt RAL 9010M as standard
  • Maximum build-up of cladding material and adhesive is 13mm
  • The door opens towards the user
  • Concelaed, adjustable cupboard type hinges
  • Rubber gasket around all sides
  • The door is removeable if damage occurs or during installation
  • Single Door (SD) only

LOCKS

Available with;

  • Concealed push catch (PC)
  • Security key lock (SL)
  • Budget Lock (BL)

FIRE RATING

The VISION 8000-NFR Access Panels are not fire rated. For fire rated products, please see VISION 8000-FR » (up to 2 hr fire rating)


ACOUSTIC SHIELDING

The VISION 8000 Series non-fire rated riser door has a standard acoustic rating of 30dB. There is no option for upgrade on this product.


TYPICAL SIZES / WEIGHTS

Our VISION 8000 Series non-fire rated access panels are made to order to suit the specified tile module size. They are available in sizes from 200 x 200 mm minimum for a single door (SD).

Nominal only, actual size is dependent on tile selected.

Measurements shown X x Y;

SINGLE DOOR (SD)

300 x 300mm - 4kg
300 x 600mm - 7kg
450 x 450mm - 8kg
600 x 600mm - 15kg
600 x 900mm - 22kg
600 x 1200mm - 28kg


MIN/MAX SIZES

Leaf width (minimum) = 200 mm
Leaf height (minimum) = 200 mm

Maximum sizes are dependent on a number of variants including the door/tile module sizes when a tiled frame (TF) / tiled door (TD) is specified, and for an exposed edge frame (EEF) / exposed door (ED) type the size refers to the outer frame size, so please contact our technical team who will assist you to determine the correct specification and dimensions for your project.

NOTES

  • All doors hinge along dimension Y
  • Other RAL paint colours or stainless steel options are available

Performance Standards VISION 8000 SERIES - NON FIRE RATED

Fire Rating Non fire rated product. Manufactured primarily from steel is non
combustible excluding the marine ply, tiled over on front face.

Guide Specification VISION 8000 SERIES - NON FIRE RATED

SUITABILITYSuitable for vertical use where panel is to be installed prior to tiling. Ideal for use in kitchens, bathrooms, or shower rooms where discreet access to services is required. All panels are manufactured to order and can be designed to suit the specified tile module.
MATERIALFrame 1.5mm / Door 1.5mm thick electro-galvanised mild steel. Door lined with marine ply to accept tiled finish.
DOOR CONFIGURATIONSingle door configuration
FRAME DEPTHOverall frame depth - 76.5mm
GROUTMinimum grout thickness = 1mm
FINISHWhite powder coated frame and door to RAL 9010M (Matt finish)
LOCKConcealed push catch (PC) / Security key lock (SL) / Budget Lock (BL)
STRUCTURAL OPENINGX and Y dimensions are outside frame sizes. Structural Opening requirement for installation is (X+(2x grout width)+5) x (Y+(2x grout width)+5).
NotesFor technical assistance, please contact our Technical Department on +44 (0)1827 719051
